Inspectra MAX


Inspectra MAX

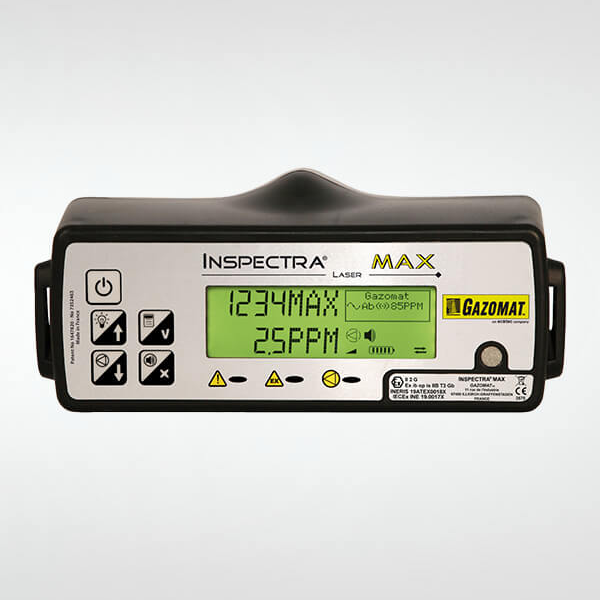

The INSPECTRA MAX from Gazomat is an ultra-sensitive, laser-based portable methane analyzer built for precise leak detection in both field and industrial environments. With selective and stable detection, Zone 1 certification, and full-day battery life, it's a powerful tool that makes methane surveying fast, safe, and reliable.

  • Laser-selective methane detection—no false alarms from other gases
  • Ultra-sensitive—detects down to 0.5 ppm (range 0 ppm–100 % volume gas)
  • Zone 1, ATEX & IECEx certified for safe use in explosive environments
  • Rugged yet portable—compact 5.95 lbs design with battery to cover a full day
  • Fast response—ready in <15 s; T10 ~2 s, T90 ~4.5 s

Technical Specifications

Dimensions 10.3 x 4.4 x 5.5
Weight 5.95bs
Temperature Range +5°F to +122°F
Battery Life 12 hrs
Export Formats Bluetooth connector or Gazomat APP
